Name: Flatpack2 Telecom Hybrid System – Green & Reliable Power for Telecom Sites
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: uncofnirmed BOM
Price: 1 USD
Availability: InStock

特徴ギャラリー製品の説明評価とレビュー見積依頼

特徴

仕様

製品名: 光電補足の通信システム

構成: リクエストとして

太陽mdoule: 48V 3200W

容量: リクエストとして

コントローラ: SmartPack r

LVLD: リクエストとして

LVBD: リクエストとして

MPPT: 付属

ハイライト:

Flatpack2 Telecom Hybrid System

Green Telecom Power System

Reliable Telecom Hybrid Power

基本情報

起源の場所: 中国

ブランド名: eltek

証明: CE

モデル番号: uncofnirmed BOM

お支払配送条件

パッケージの詳細: カートン

受渡し時間: 10週

供給の能力: 1ヶ月あたりの650セット

ギャラリー

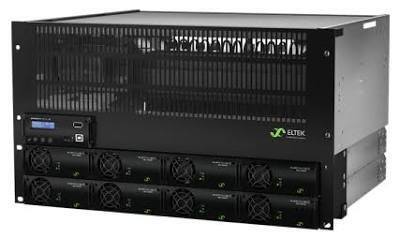

Flatpack2 Telecom Hybrid System – Green & Reliable Power for Telecom Sites

製品の説明

Flatpack2 Telecom Hybrid System – Green & Reliable Power for Telecom Sites

Eltek's Hybrid power core is a comprehensive and versatile power system that is built on the Flatpack2 product family.

It is designed to provide a complete and flexible power solution, with all energy sources, flow and storage being monitored by a single Smartpack2 controller. The power core includes integrated components such as battery distribution, DC load distribution, rectifiers, and solar chargers with PV connection panel. It is designed with flexibility in mind, making it easy to upgrade and adapt to changing requirements. In a typical hybrid site, the power core utilizes PV panels in combination with a Gen-set and/or mains connection, providing a reliable and sustainable power source.

Flatpack2 - Solar Autonomous Power Core

DC Power supply system, 300A-500A 4U Distribution. Eltek's Solar Autonomous power core is based on the Flatpack2 product family, fully integrated into complete and flexible solutions with one single Smartpack2 controller.

Key Features

Integrated hybrid power core with Flatpack2 series modules
Unified energy monitoring & management via single Smartpack2 controller
Built-in MPPT solar charge controller
Integrated battery distribution, DC load distribution, rectifiers and PV access panel
Support hybrid power supply: solar + mains + generator
High flexibility, easy expansion and upgrade
Stable performance, suitable for unattended communication sites
Standard 19-inch rack installation, compact structure

Product Images
