Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers

1
MOQ
Inquiry
価格
Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
モデル: NetCol8000-C150D
電動暖房のタイプ: PTC
単位重量 (kg): 295
冷却能力: モデルによって異なりますが、通常は 5kW ~ 50kW
加湿器: 8
セールスポイント: 常に温度と湿度を保つ
空気体積: 6000m3/h
湿度精度: ±1.5%
保証: 1年
エア フィルターのレベル: G4
ユニットサイズ: 760*550*1900
主なセールスポイント: 省エネ
機械試験報告書: 提供された
ファンの形態: ECファン
圧縮機QTY: 2個
フィルター: G4 空気フィルター
基本情報
起源の場所: 中国
ブランド名: HUAWEI
モデル番号: NetCol8000-C150D
お支払配送条件
パッケージの詳細: 木箱
受渡し時間: 5〜8週間
支払条件: T/T
供給の能力: 毎月500セット
製品の説明
Description

Huawei NetCol8000-C150D is a 150kW chilled water room-level precision air conditioner specially developed by Huawei for medium and large data centers, IDC computer rooms, financial disaster recovery centers and operator base stations. It focuses on high-efficiency refrigeration, intelligent temperature control, high-reliability operation and maintenance, and green energy saving. It perfectly meets the constant temperature and constant humidity environmental requirements of high-density IT equipment, and is the core temperature control choice for data center infrastructure.

Appllcation

Medium & large data centers, IDC/EDC computer rooms, cloud computing centers

Financial institution headquarters, disaster recovery centers, bank trading computer rooms

Telecom core computer rooms, provincial-level base data centers

Government cloud, smart city and safe city data computer rooms

Key business computer rooms in energy, medical treatment, education and other industries


Specification

  • Rated Cooling Capacity: 150kW (Chilled Water Type)
  • Air Volume: 13750m³/h
  • Fan Type: EC Variable-frequency Centrifugal Fan
  • Humidification Type: Wet Membrane Humidification 7kg/h
  • Electric Heating: PTC Heating 12kW
  • Power Supply: 380-480V / 3Ph / 50-60Hz
  • Dimension (W×D×H): 1200mm×850mm×2000mm
  • Weight: Approx. 360kg
  • Air Supply Mode: Downflow, Room-level Installation

Product Display

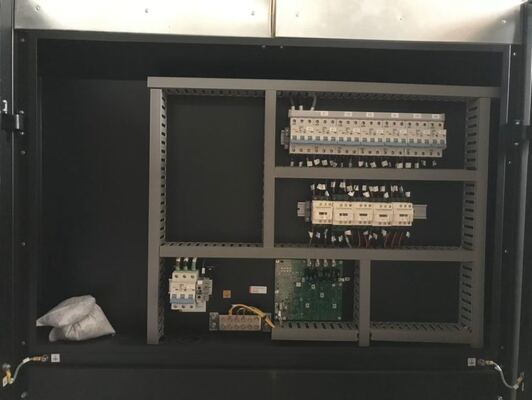

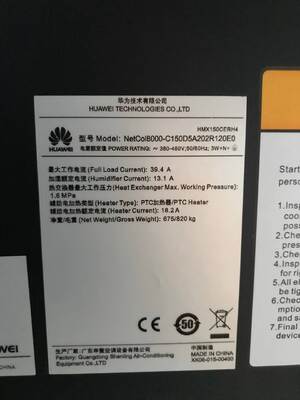

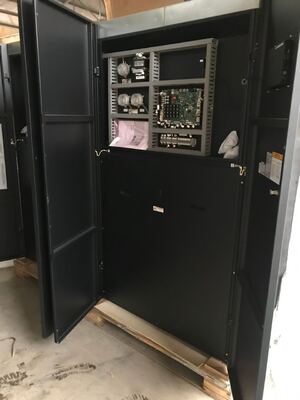

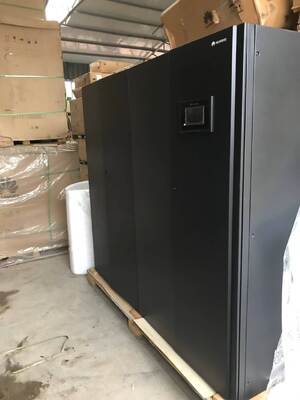

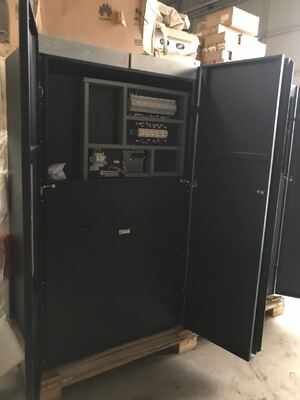

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 0

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 1

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 2

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 3Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 4

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 5


Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 6

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 7
