The Vertiv™ NetSure™ 731 CC2 is a standalone indoor DC power system designed to provide unmatched reliability, availability, and efficiency to protect critical edge equipment, thereby ensuring vital round-the-clock network

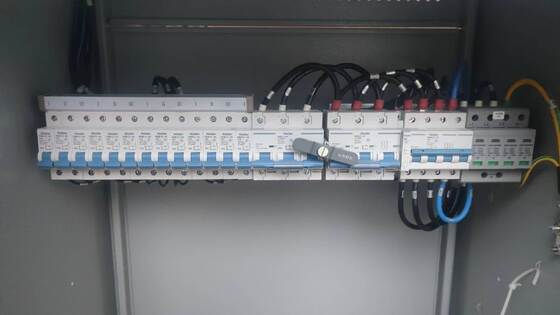

continuity. It embodies functions such as input distribution and output critical & non-critical distribution along with surge protection devices. An integrated, sophisticated controller enables remote monitoring capabilities and ensures overall system integrity.
| Parameter | Details |
|---|---|
| Model | NetSure 731 CC2-X2 |
| Input | 380-415V AC, 3W+N+PE, 74A, 50/60Hz |
| Output | -48V DC, Max 600A, 36.0kW |
| Float Voltage | 53.5V |
| Equalizing Voltage | 56.4V |
| Load Low Voltage Disconnect (LLVD) | 44.0V |
| Battery Low Voltage Disconnect (BLVD) | 43.2V |
| Battery Strings Supported | 2 sets |
| Efficiency | ≥96% (industry-leading for energy savings) |
| Topology | Hot-swappable rectifier modules (up to 12 units, expandable) |

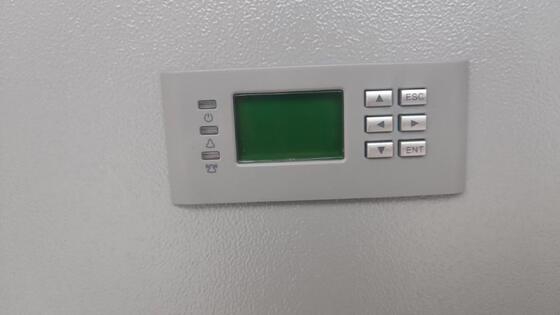

| Control & Monitoring | Digital LCD controller with full system diagnostics |
Our solutions are designed to meet the diverse needs of telecommunication companies worldwide. We conduct detailed site surveys, create professional cost-effective plans aligned with business objectives, and provide 24/7 technical support and maintenance services to ensure smooth telecom network functioning.
