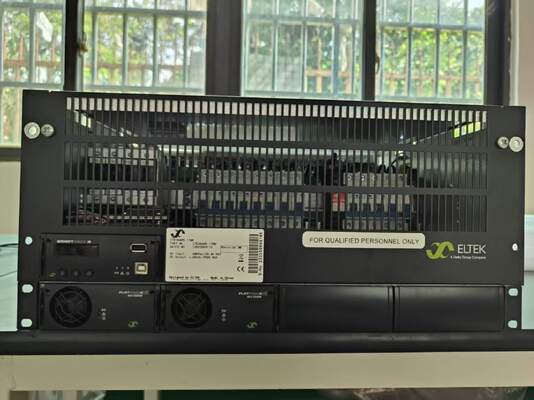

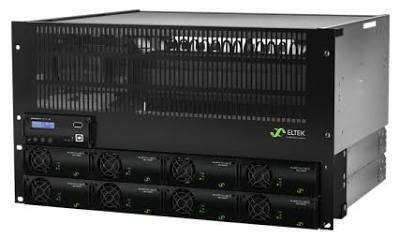

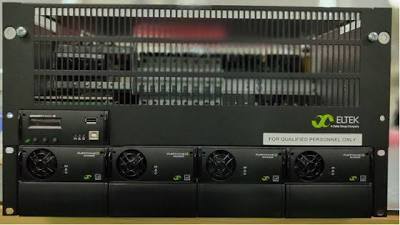

The Eltek 48Vdc 12kW Powercore stands as a pinnacle of high-efficiency DC power systems, specifically engineered for modern telecommunications and industrial infrastructures. At its core, this 5U high-density system integrates four Flatpack2 48/3000 HE rectifier modules (P/N: 241119.105), achieving a total output capacity of 12,000 Watts. The standout feature is its HE (High Efficiency) technology, which pushes energy conversion rates to over 96.5%. This significant reduction in heat dissipation not only extends the lifespan of internal components but also slashes operational expenditures (OPEX) and the carbon footprint of data centers. Managed by the intelligent Smartpack R controller, the system offers advanced monitoring and self-protective mechanisms, ensuring that your critical equipment receives stable, uninterruptible power even under fluctuating grid conditions. By choosing this HE-enabled system, operators can achieve a faster return on investment through substantial energy savings and minimized cooling requirements in rack-mounted environments.
| Product Name | 48Vdc 12kW Powercore |
| Brand | Eltek |
| System Height | 5U High-Density Rack Mount |
| Total Output Power | 12kW (Max) |
| Nominal Output Voltage | 48Vdc (Adjustable range typically 43.2 - 58Vdc) |
| Rectifier Modules | 4 x Flatpack2 48/3000 HE (P/N: 241119.105) |
| Rectifier Slots | 4 x Rectifier Slots (Full occupancy) |
| System Controller | Smartpack R Intelligent Controller |
| Battery Distribution | 4 x 125A/1P Battery Breakers |
| NPL Distribution | 2 x 63A, 3 x 25A (Non-Priority Load) |
| Load Distribution | 2 x 40A, 4 x 25A, 2 x 16A (No-Priority Load) |
| Spare Slots | 2 x Spare (F1-F10) & 2 x Spare (F11-F17) |
| Efficiency | Up to 96.5% (High Efficiency technology) |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
